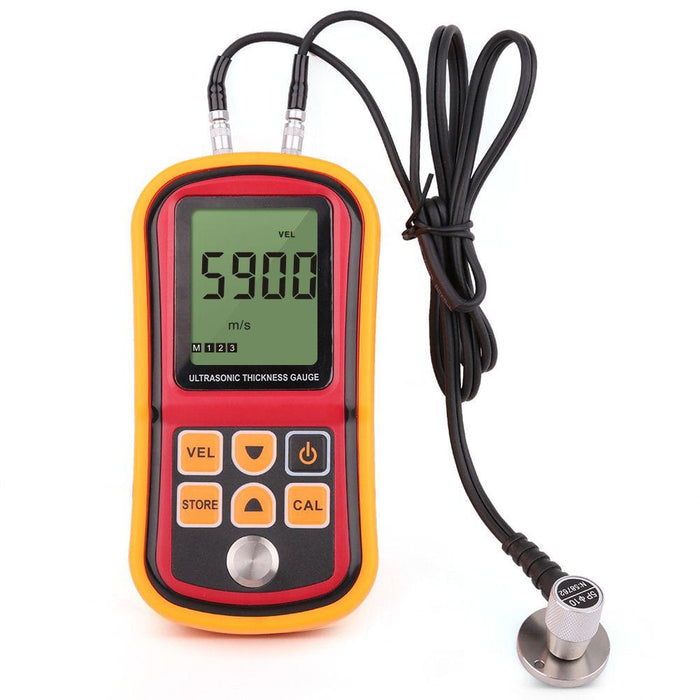

Ultrasonic Thickness Gauge, Digital Thickness Meter Tester, Range 1.2-220mm, with Hard Storage Box
Wide Application
LotFancy ultrasonic thickness gauge adopts ultrasonic measuring principle and provides quick and precise measurement of thickness in manufacturing fields, metal processing, and commercial inspections.
The ultrasonic thickness gauge is suitable for the material that conducts and reflects constant sonic velocity, such as metal, plastic, ceramic, glass, etc.
Note: This gauge cannot measure the thickness of cast iron, due to its big crystalloid composition.
Specifications
LCD digital display: 4 digits.
Minimum display unit: 0.1mm.
Working frequency: 5MHz.
Measurement range: 1.2-225.0 mm (Steel).
The minimum limit for tubes measurement: Φ20mm diameter x 3mm thickness.
Accuracy: ± (1% H + 0.1 mm) (H denotes the measured thickness).
Sound velocity range: 1000-9999m/s.
Measuring sound velocity with a given thickness.
Measuring range: 1000-9999m/s.
When the given thickness over 20 mm, the accuracy is ±1%; when the given thickness less than 20mm, the accuracy is ±5%.
Operating temperature: 0 - 40°C (32 - 104 °F). Normal operation current ≤ 50 mA. Stand-by current: ≤ 20 μA.
Power supply: 3 x 1.5 AAA alkaline batteries
Size: approx. 72 x 146 x 29 mm. (2.83 x 5.75 x 1.14 inches).
Package Includes
1 x Ultrasonic thickness meter(with rubber case)
1 x Transducer (10 mm, 5 MHz)
1 x 4 mm Sample block
1 x Bottle of coupling agent (50 ml)
1 x Operating manual
3 x AAA alkaline batteries
1 x Storage box
