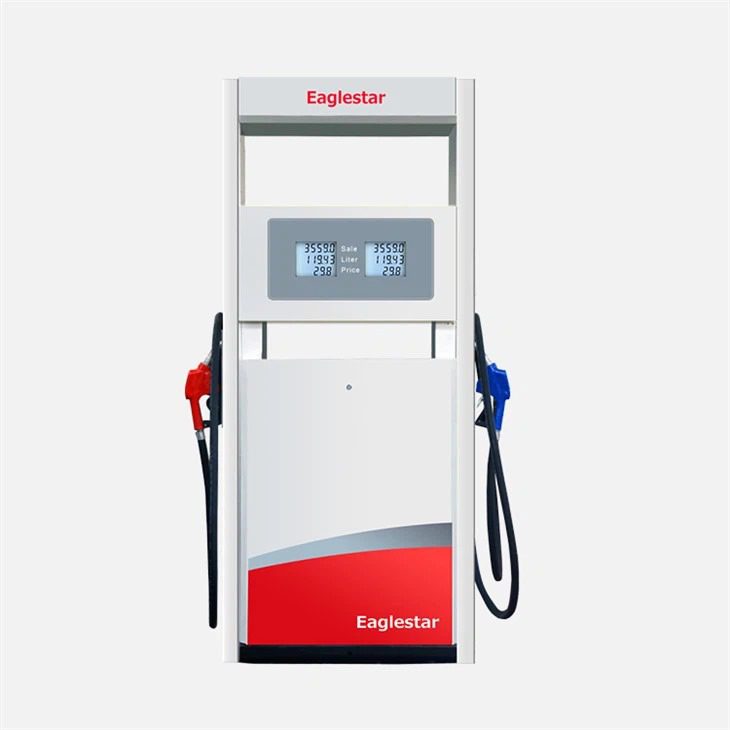

Eaglestar EG1 series Fuel Dispenser Machine
Product Details
Standard Configuration
EG1 series fuel dispenser machine Basic models and standard features:
● 1 hose 1 product, 2 hoses 1 product and 2 hoses 2 products.
● Standard duty: 50 liters per min.
● Vane pump and 4-piston flow meter
● 775 LCD display
● Sight glass
● Single phase ex motor
Models:
| Model | Pump | Nozzles Products and CPU boards | Dimension |
| EG1-111V or TK | V: vane pump
TK : gear pump |
1 hose 1 product 2 displays | Net size: 900*450*2080
Package:1060*470*2100 |
| EG1-212V or TK | 2 hose 1 product 4 displays | ||
| EG1-222V or TK | 2 hose 2 products 4 displays | ||
| EG1-111S | Submersible dispenser | 1 hose 1 product 2 displays | |
| EG1-222S | 2 hose 2 products 4 displays |
Technical Parameters:
● Accuracy：±0.25%
● Flow Rate：Standard Duty (5~50)L/Min, Heavy Duty (7~70)L/Min.
● Digits For Sales : 7 Digits
● Digits Of Volume : 7 Digits
● Digits Of Unit Price : 5 Digits
● Mechanical Totaliser : 7 Digits
● Electronic Totaliser : 10 Digitis
● Noise：≤70db(A)
● Application Products：Gasoline, Diesel And Kerosene
● Motor：Ac380V Or 220V 50Hz (+10%, -15%) Explosion Proof, Continuous Duty With Over Load Protection
● Temperature：-25°C ~ 55°C
● Humanity：≤95%
● Ex Mark：Ex d Ib Mb Iia T3 Gb
● Ex Approval：Cnex16.1148
● Measurement Approval：Yuzhi 00000374
Packing, Storage, Handling and Transportation
Wooden Package or Carton Package for EG1 series fuel dispenser machine
24 units for 20 foot container, 48 units for 40 foot container.
