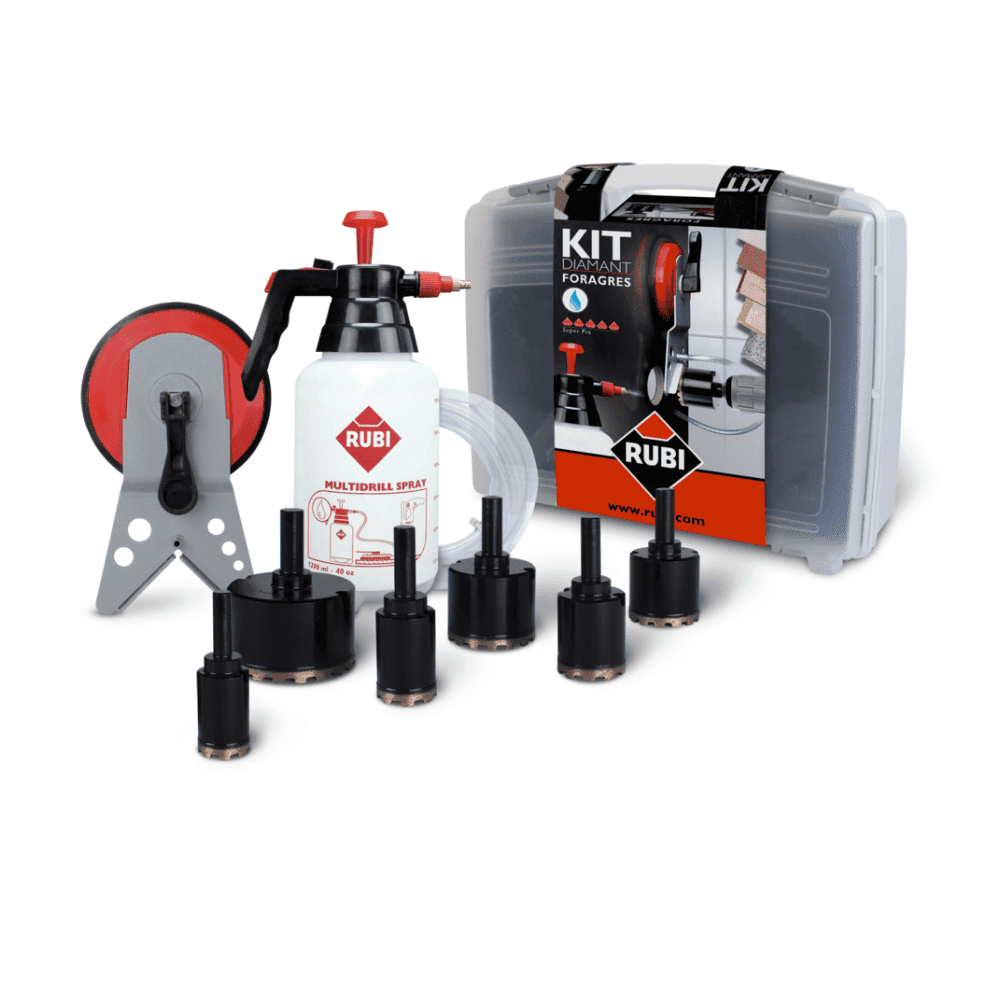

FORAGRES Diamond Drill Bits Kit

The FORAGRES kit consists of: a MULTIDRILL guide, a 1.2-liter water tank and a manual water pump, a 2 m hose, 6 diamond drill bits (20, 28, 35, 43, 50, 68 mm diam.), and a practical case.

The diamond rim of FORAGRES drill bits is sintered and joined to the drill bit body by laser welding.

FORAGRES diamond drill bits must ALWAYS be used water-cooled and with a non-percussive power drill.

The use of the MULTIDRILL centering guide (ref. 50944) is recommended for centering holes with a diameter of up to 83 mm. For drilling holes with diameters greater than 84 mm, the FORAGRES guide is recommended (ref. 50900).

The average life of the FORAGRES diamond drill bits is 60 holes and ALWAYS depends on the type of material, its thickness, proper cooling, and use.

The drilling depth of the FORAGRES diamond drill bits is 30 mm (33 mm for diameters of 55 and 75 mm).

Before further drilling, we must ensure that the drill bit is clean and free of any obstruction or remains.

The maximum speed of use for FORAGRES diamond drill bits is 900 rpm except in diameters of 100 and 120 mm where the maximum speed for use is 450 rpm

For a better finish and longer drill bit life, it is important to respect the proper rotation speed and exert moderate pressure during drilling.
